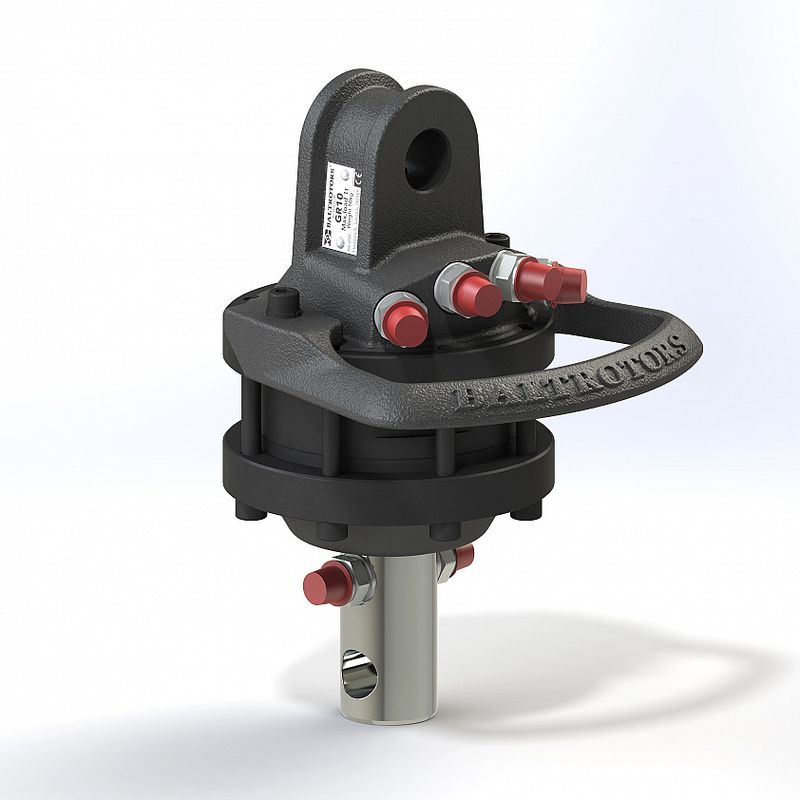

Rotator 1,0 ton
Antal i förpackning: :size 1
Produktvideor
Ta en titt på produktvideor, genomgångar och kundintervjuer för att lära dig mer om våra produkter.
Beskrivning av Rotator 1,0 ton

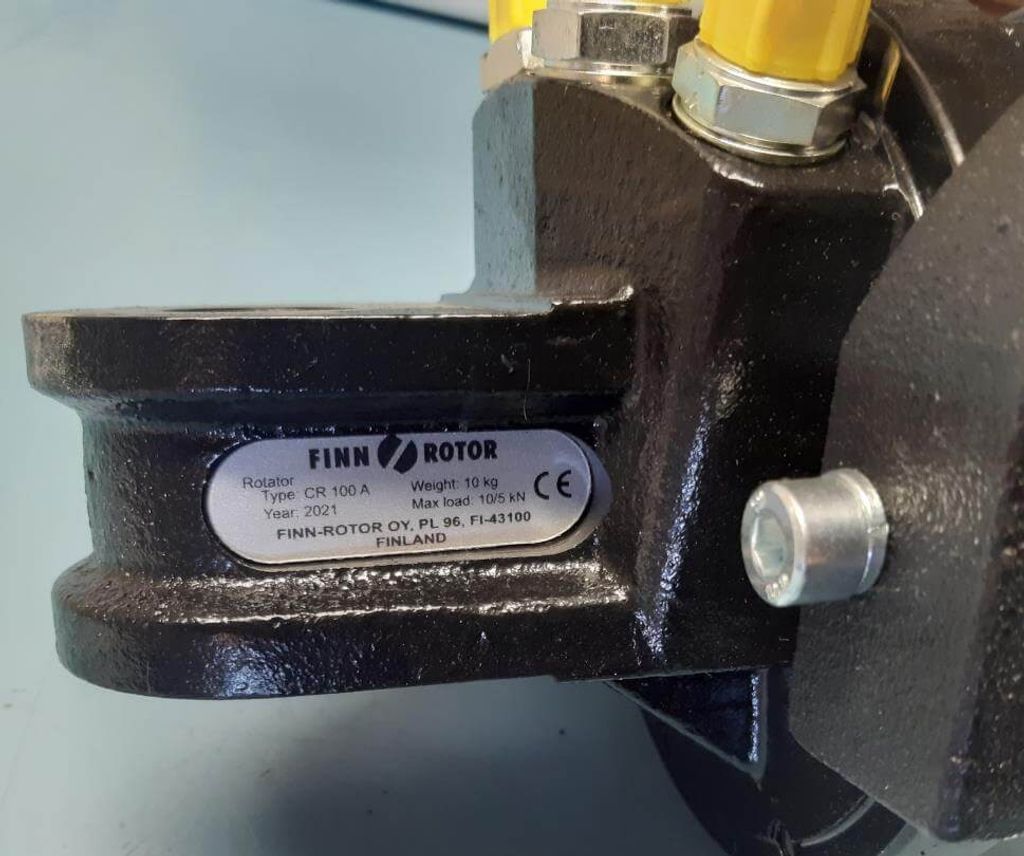

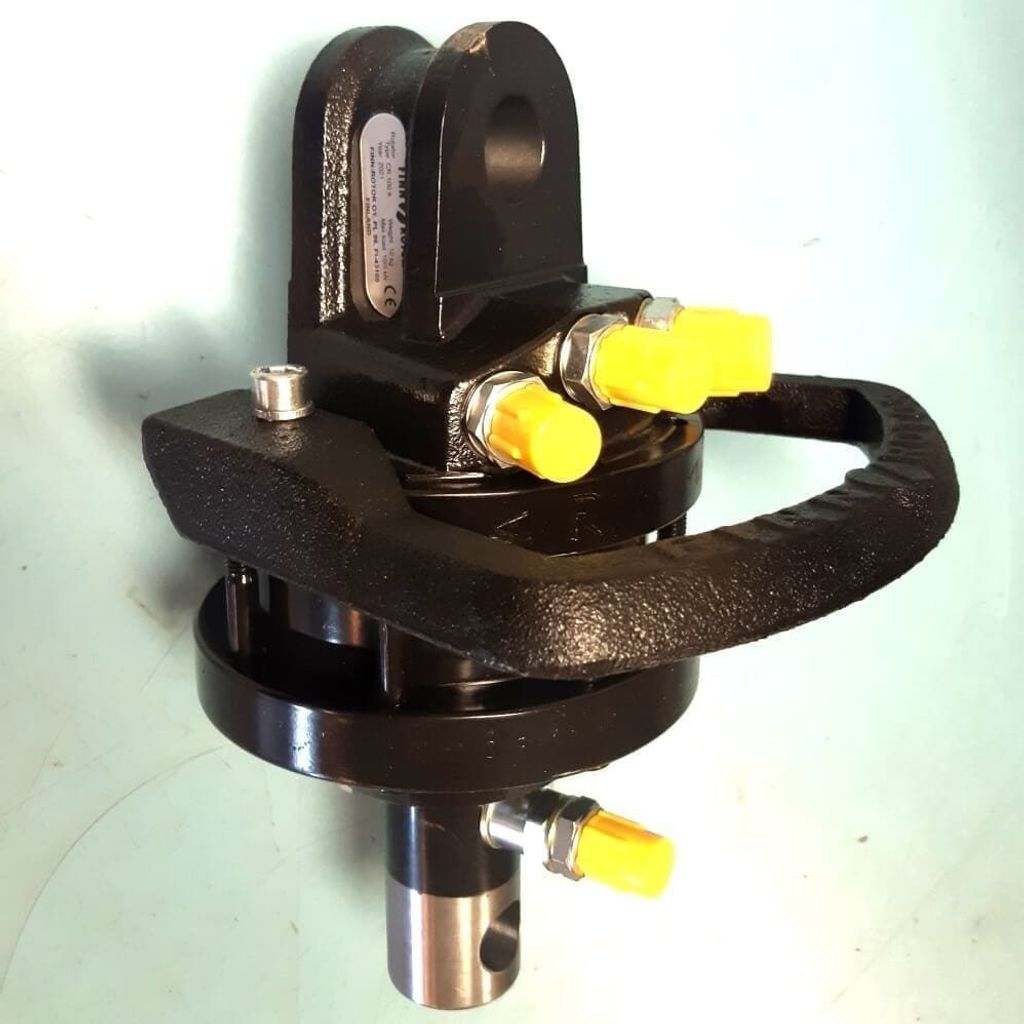

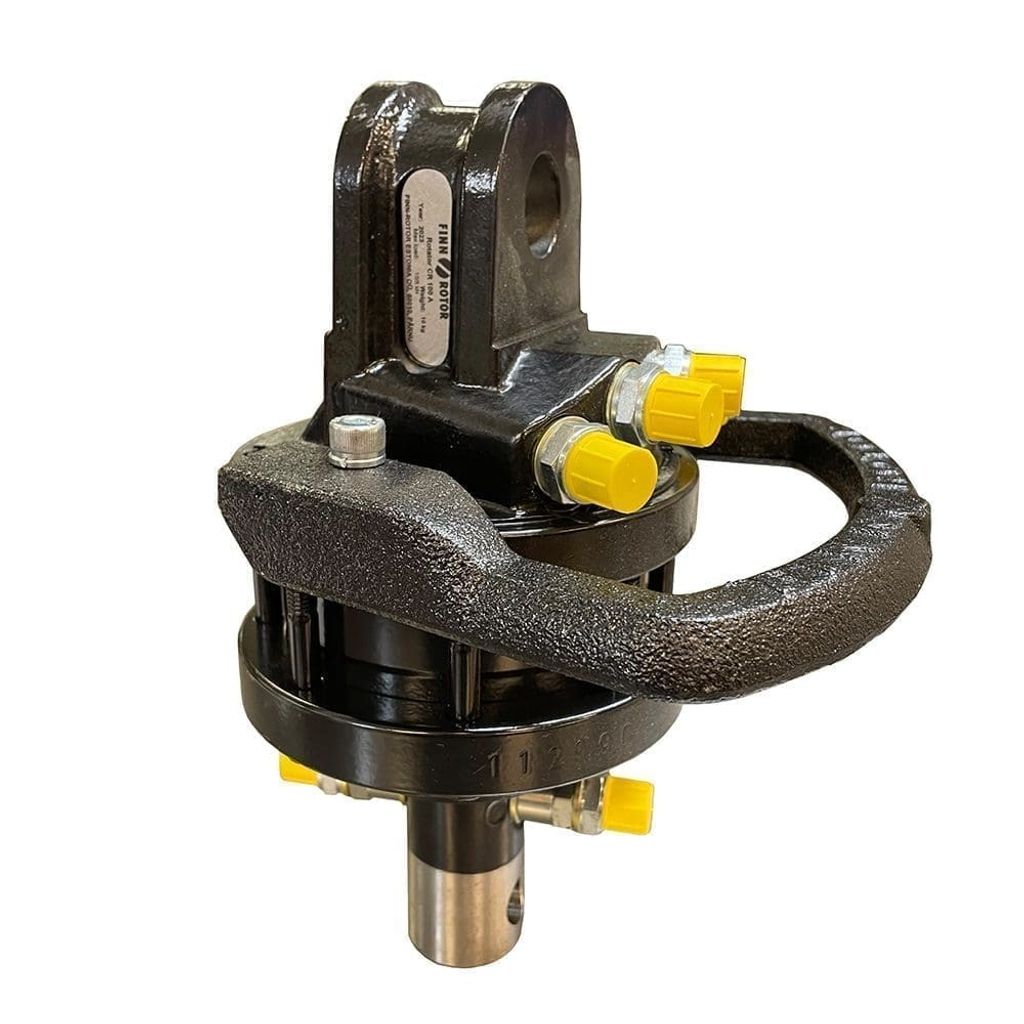

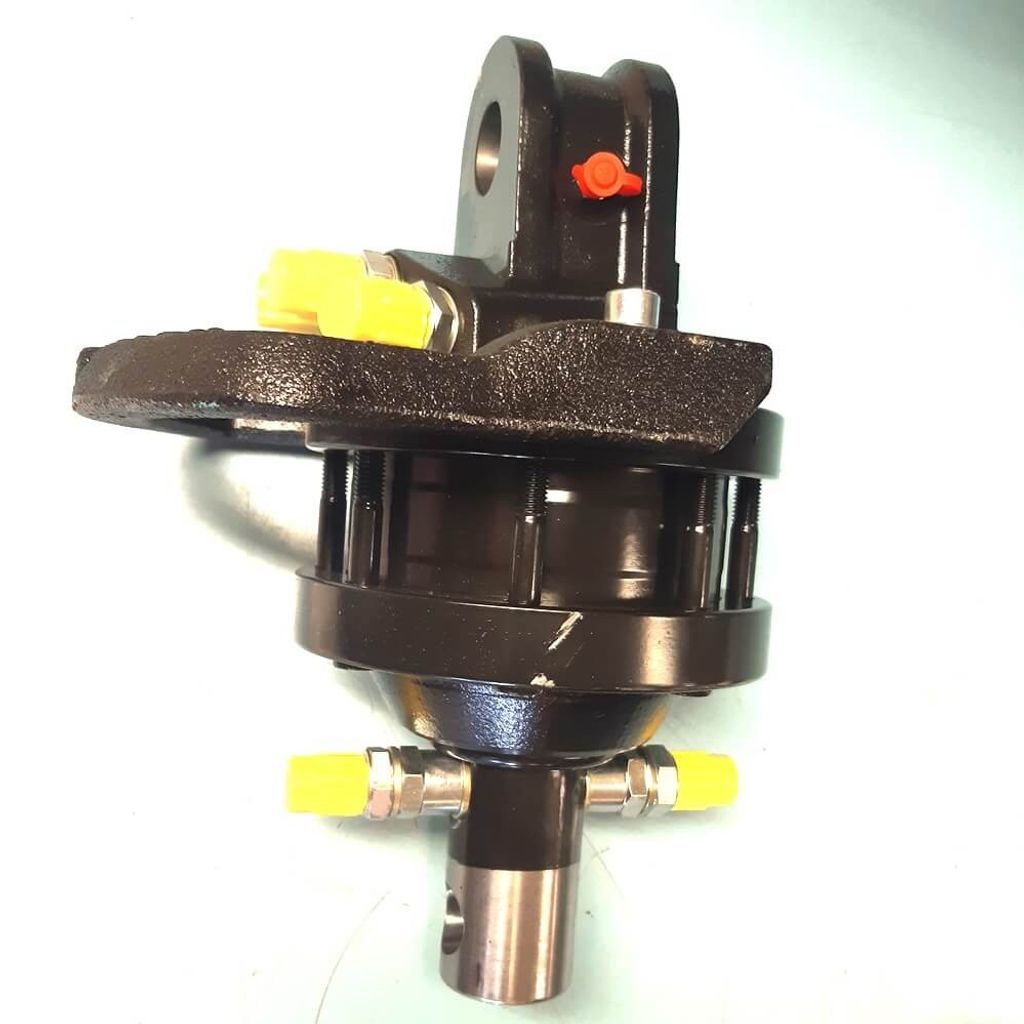

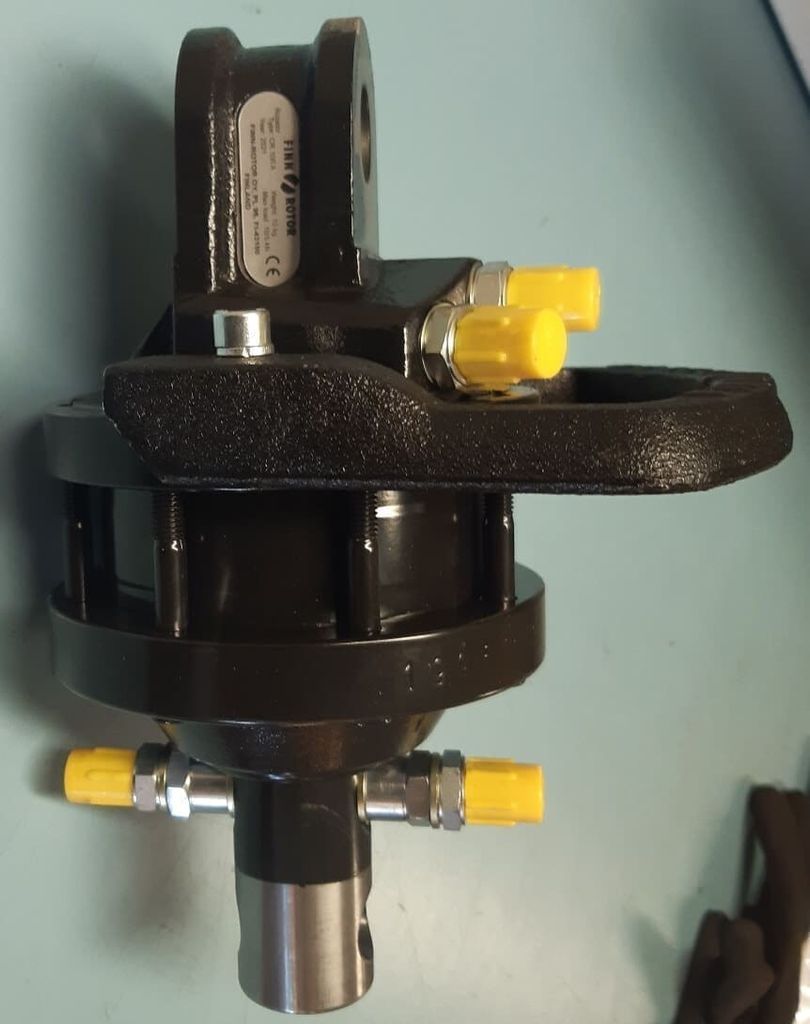

Finn-Rotor CR100, rotator 1,0 ton.
Tekniska specifikationer från tillverkaren Finn-Rotor:

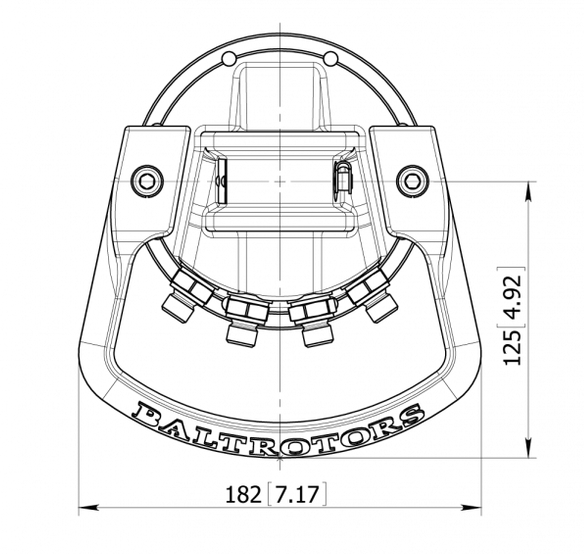

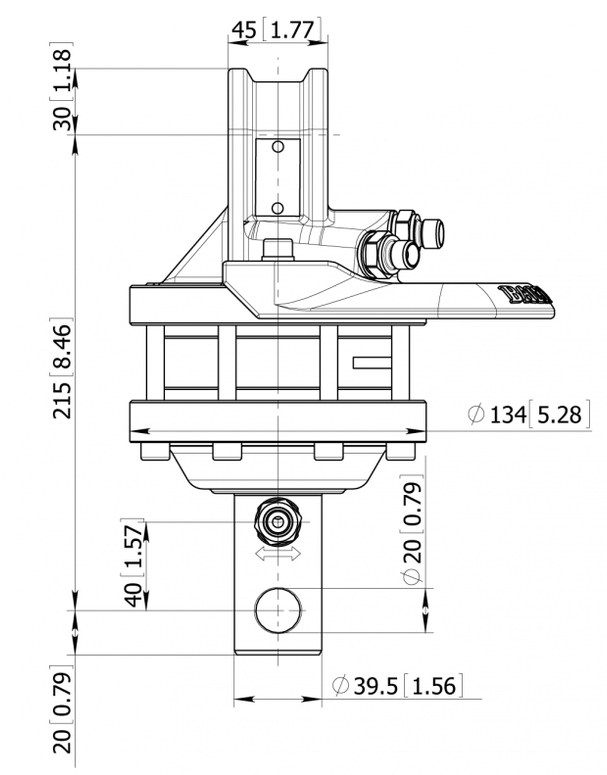

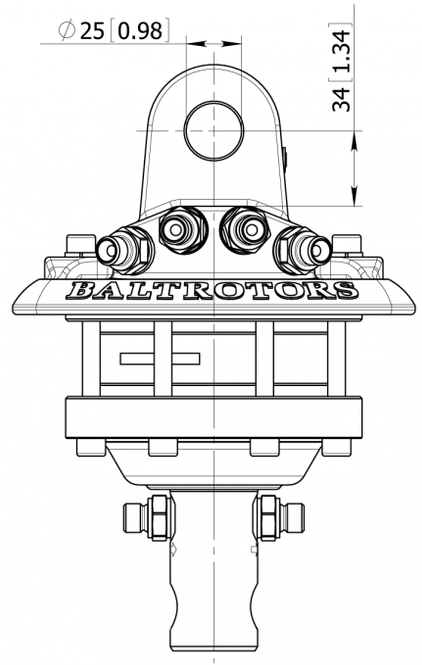

Här hittar du en måttskiss med specifikationer.
Tekniska specifikationer från tillverkaren Finn-Rotor:
| Rotation angle | unlimited ° |
| Max rotation pressure (R) | 250 bar |
| Max working pressure grapple open (GO) | 200 bar |
| Max working pressure grapple closed (GC) | 300 bar |
| Capacity | 193 cm3 |
| Torque (250 bar) | 450 Nm |
| Max axial load (static) | 10 kN |
| Max axial negative load (static) | kN |
| Max axial load (dynamic) | 5 kN |
| Max axial negative load (dynamic) | kN |
| Weight | 10 kg |
| Connections | G 1/4" |
| Connections bottom | |
| Stud bolts | M8 |
| Stud bolts tightening torque | 40 Nm |
| Flange bolt | |
| Flange bolt tightening torque | Nm |
| Maximum oil flow | 10 lpm |
Här hittar du en måttskiss med specifikationer.
